Fantom™ Completion Accessories


Fantom™  Completion Accessories offer critical functionality without impeding the completion or production operation. Once activated, you can forget they were ever there.


Run

Run as part of the tubing string.

Set

Activate remotely using a ball or pressure cycles.

Forget

Provides fullbore tubing with no intervention required.

Fantom

Completion Accessories

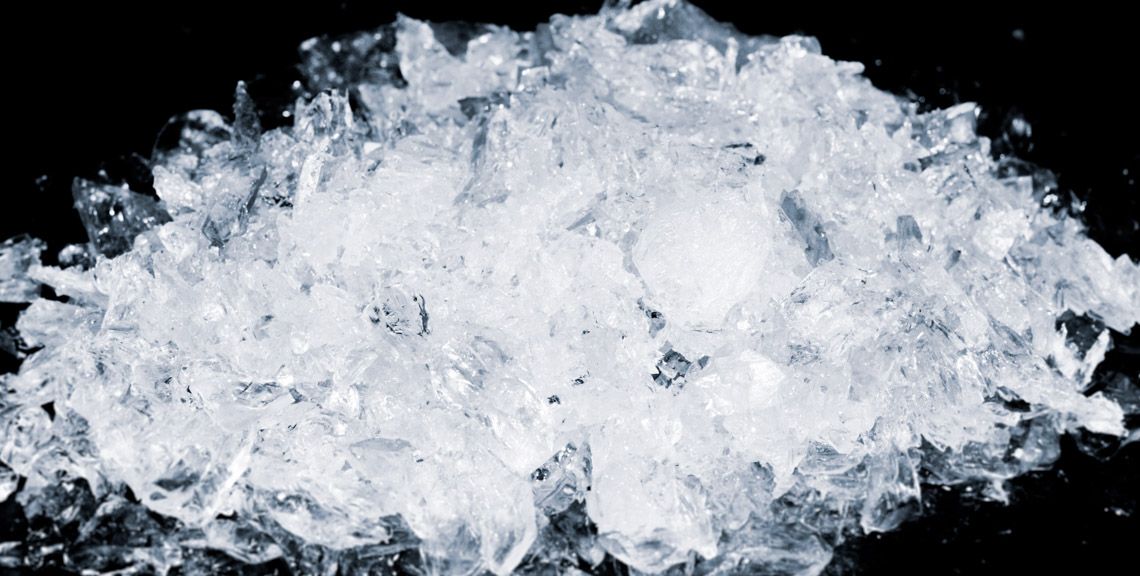

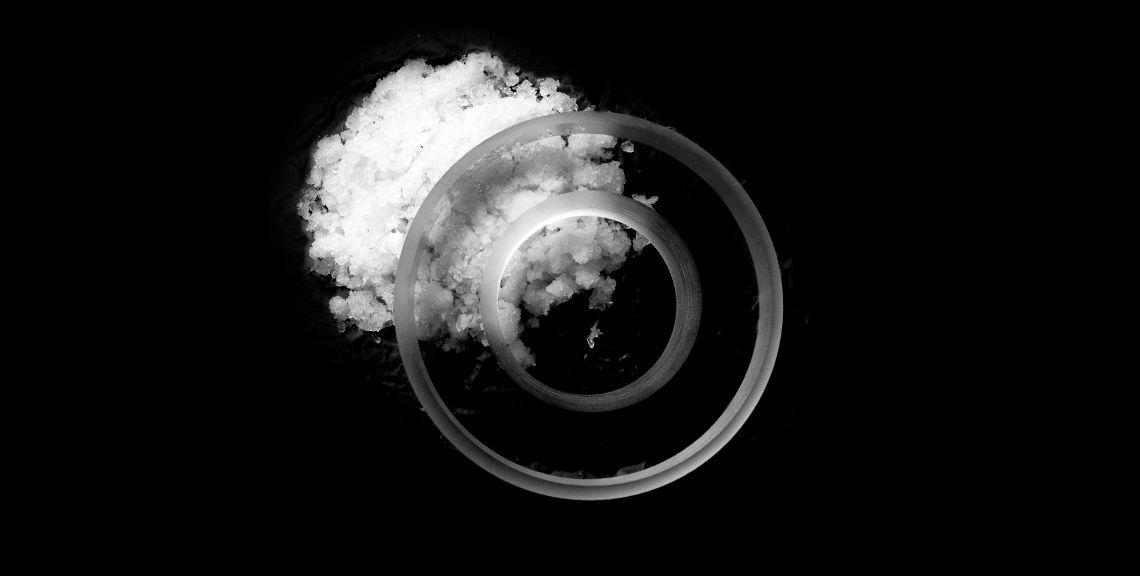

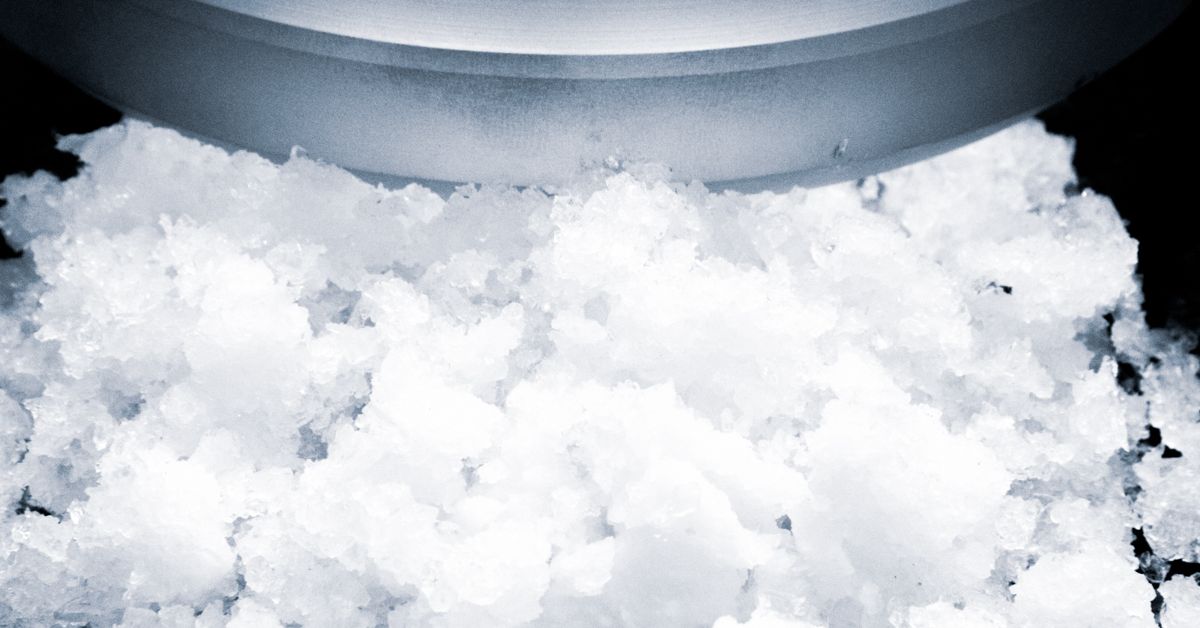

The patented Fantom™ product line relies on Entech's Shatter Glass Technology, which utilizes proprietary glass machining and tempering specifications. The result is a high strength glass that can withstand shocks during handling and well operations, while ensuring complete disintegration upon activation to leave a fullbore tubing.



Odoo text and image block

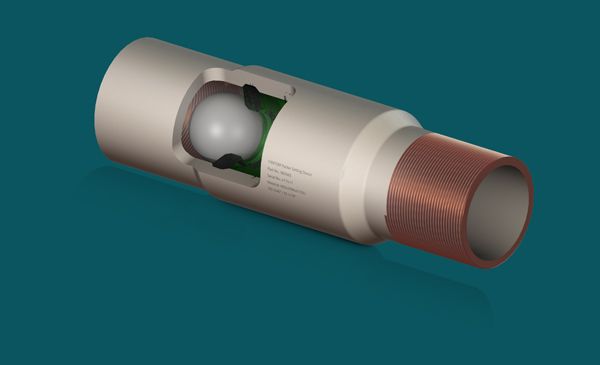

Fantom Tubing Devices

The Fantom™ Tubing Devices provide temporary blockage of the tubing or casing string for well construction operations followed by intervention-less removal. Operators can choose between several versions, all of which allow for customized activation methods. Request a technical data sheet for a complete list of options.

Odoo CMS - a big picture

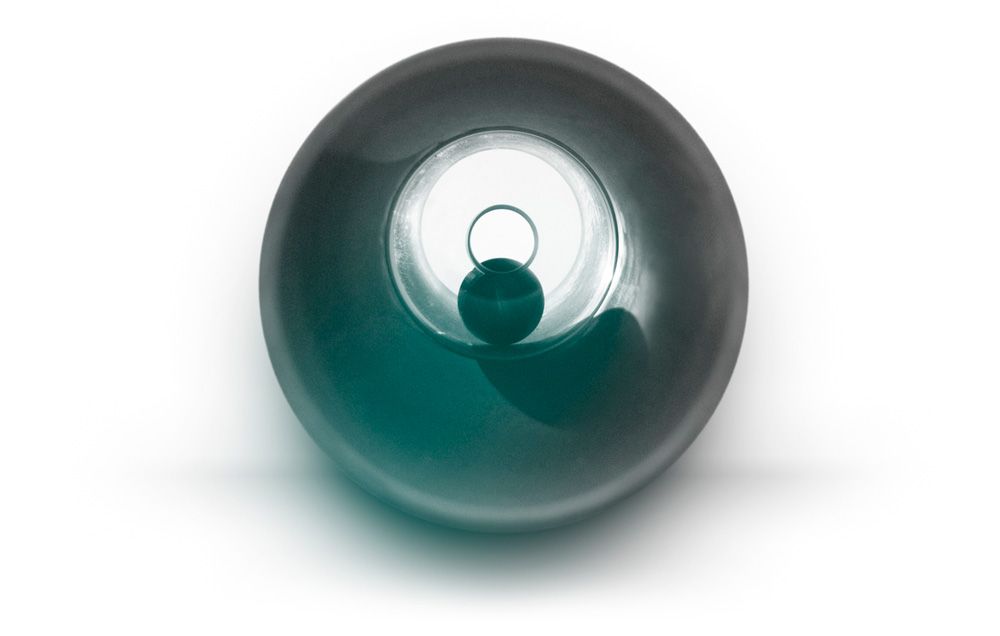

Shatter Ball Seat Activation Methods:

Mill Open

Drop a dissolvable ball to set packer and test tubing. Mill or spear out glass at next planned intervention.

Shear Open

Drop a dissolvable ball to set packer and test tubing. Shear out glass at predetermined pressure.

Cycle Open

Drop a dissolvable ball to set packer and test tubing. Apply pressure cycles to shear out and shatter glass.

Applications:

Set packers




Test tubing




Odoo text and image block

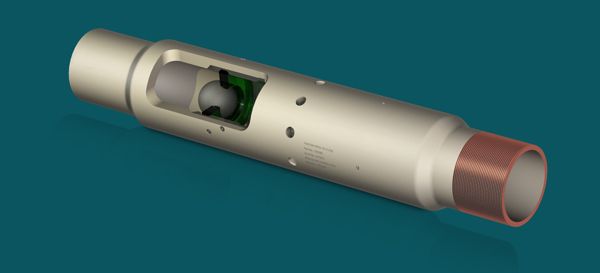

Fantom™ Ported Tools

The Fantom™ Ported Tools incorporate circumferential ports and provide isolation or a connection between tubing and annulus. Entech's Shatter Ball Seat technology is used for tool activation.

Odoo CMS - a big picture

Products:

OPEN-TO-CLOSE ("OTC") SLEEVE

Provides a circulation point for installation and fluid displacement. Closes remotely by dropping a ball.

CLOSE-TO-OPEN ("CTO") SLEEVE

Provides pressure integrity during installation and testing, then opens for production or annular access. Ask us how the CTO can enable pressure tests from below your production packer.

PREMIUM DISPLACEMENT SLEEVE ("PDS")

A solution for above-packer displacement. Options are available for metal-to-metal sealing capability, with multiple open-to-close cycles. Contact our sales team to learn more.

Odoo CMS - a big picture

Product:

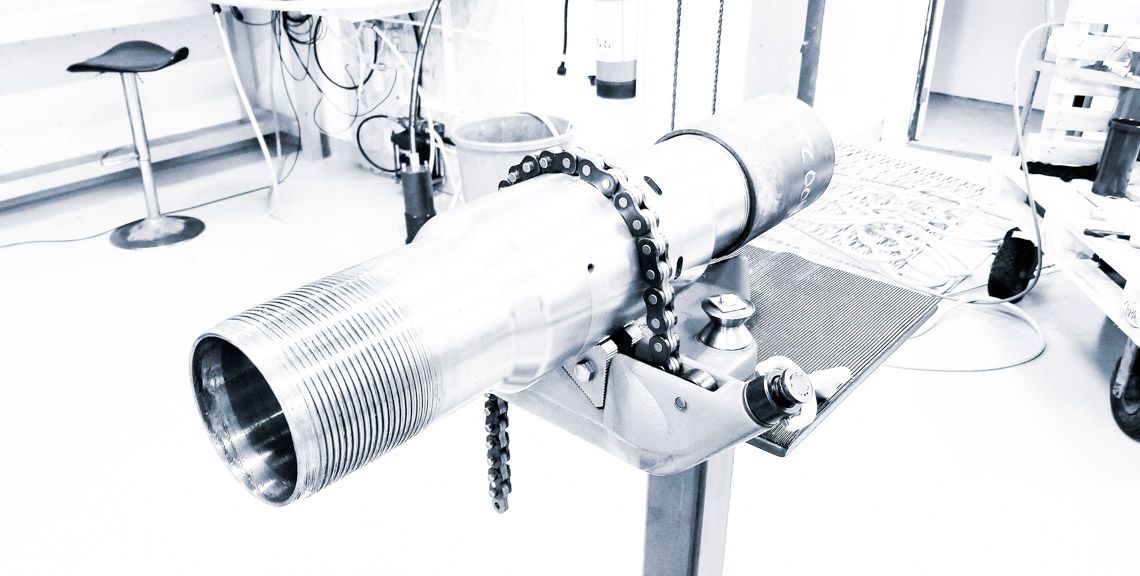

ANNULAR ISOLATION COLLAR  ("AIC")

Applications for the Annular Isolation Collar:

Relieve trapped annulus

Ball-activated annular ports relieve trapped pressure between the production packer and liner hanger to prevent thermal pressure buildup.


Replace unconventional stage one

Frac ports are integrated with the casing collar and isolated with the SBS for casing installation. The SBS is subsequently removed by bullheading a ball to TD.

Eliminate TCP perforating

The ultimate in simplicity, Fantom™ Annular Isolation Collars provide a pressure-tight solution for a pre-perforated casing or liner.

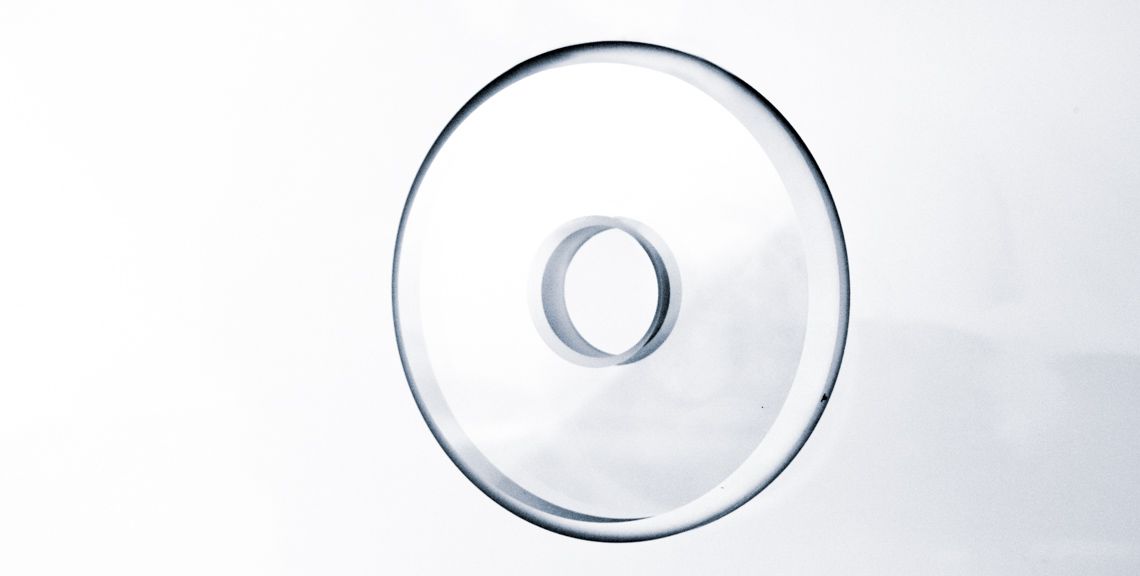

Fantom™ Shatter Ball Seat

The Fantom™ Shatter Ball Seat ("SBS") is available as a subcomponent to enhance your product's functionality. The glass can handle up to 10,000 psi differential in certain sizes, allowing for high-pressure commissioning operations prior to removal.

Odoo CMS - a big picture

Applications:

ISOLATE SETTING PORTS

The hydrostatic-set packer becomes a ball-activated packer.


Delay Tracer Release

Combined with chemical tracer carriers, the SBS enables on-demand tracer release.



Fantom™ Dissolvable Polymer Balls

The Fantom™ fresh-water dissolvable polymer balls provide excellent strength and physical properties with rapid dissolution. Ball grades are selected that  best suit your well environment and operations. The factors taken into consideration include temperature, chloride and acid content, pressure differentials and the preferred times for pre-dissolution and dissolution.

Odoo CMS - a big picture

Something for you?


Request Proposal

Our technical proposals include a completion recommendation, equipment specifications and price estimate.


Team Up

Fantom Completion Accessories are the perfect complement for your upper completion product line. Get in touch to discuss licensing opportunities!


Schedule Presentation

Whether a formal lunch-and-learn or brief introduction, our team values face time over emails and phone calls.


Invest

Entech offers a number of investment opportunities to support the commercialization and growth of it's product lines. Request a prospectus here.
